Advantages of Servo Torque Control
- **Perfect Twist Homogeneity:** The servo motor system ensures that the twist amount remains constant from the beginning to the end of the spool, regardless of spool diameter changes.
- **Real-Time Torque Adjustment:** Torque is instantly monitored and controlled via the encoder, ensuring the highest stability in production.
- **Energy Efficiency:** Intelligent motor management optimizes power consumption.
- **Wide Application Range:** Suitable for heavy industrial yarns, technical textiles, and composite threads.
- **User-Friendly Control:** All process parameters (speed, twist amount, torque value, traverse width, etc.) are easily managed via the PLC touch screen.
Technical Specifications (Unchanged)
| Spool Diameter |
Ø630 mm (25 inch) |
| Max Spool Height |
400 mm |
| Max Twisting Speed |
**1000 RPM** |
| Main Motor Power |
5.5 kW AC Servo |
| Control System |
PLC + HMI Touch Screen |
| Winding Type |
Precision / Random (Adjustable) |
| Twist Direction |
S / Z |
| Denier Range |
5000-100000 DENIER |
Application Areas
- High-Performance Technical Textiles
- Composite Yarns for the Aerospace and Automotive Industries
- Industrial Sewing and Big-Bag (FIBC) Yarns
- All Multi-Ply Twisting Applications Requiring Precision
- Cable Filler and Reinforcement Yarns
- Heavy-Duty Industrial Twines and Rope Strands

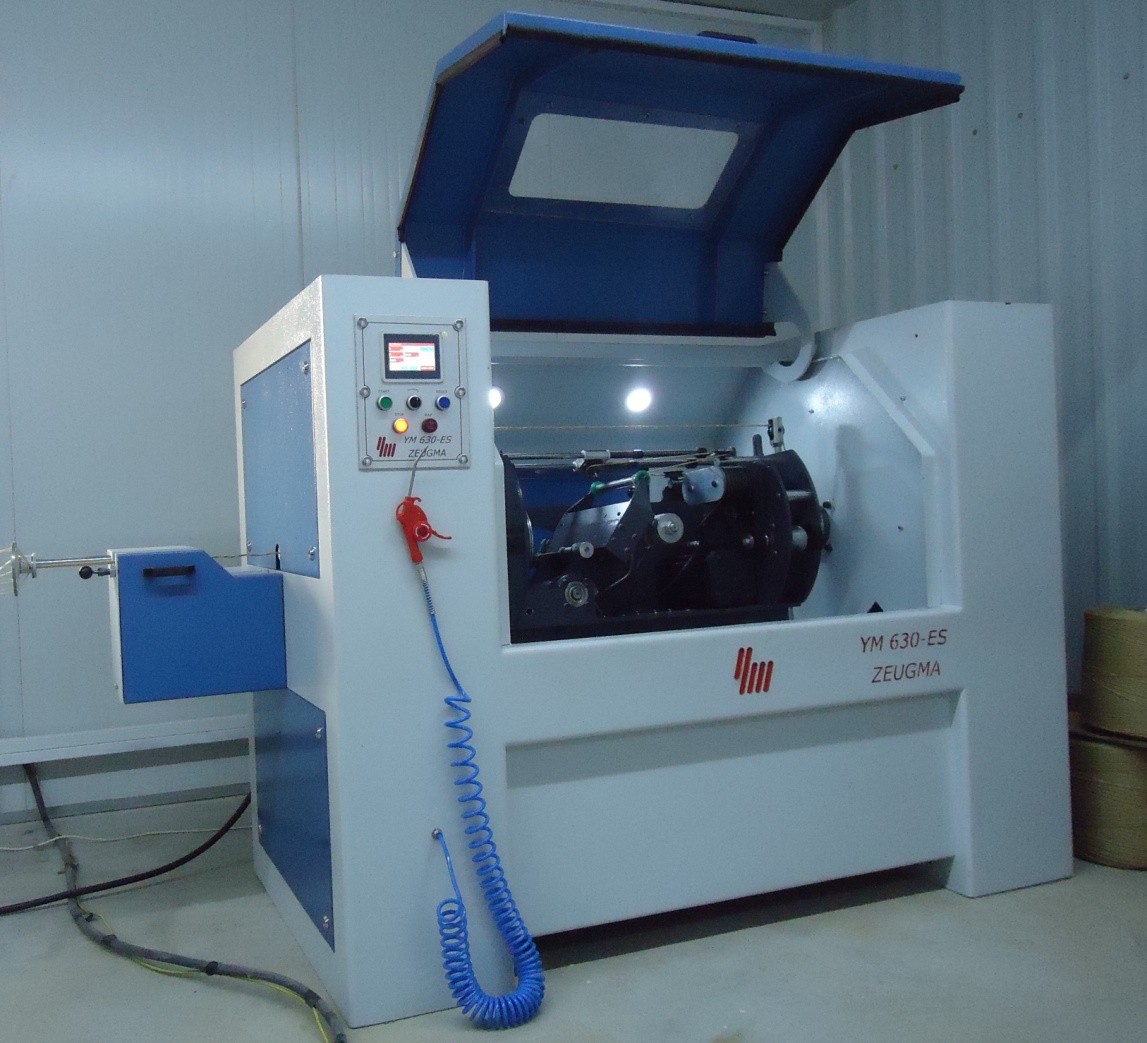

To get more information or request a quote for the **YM630ES Twisting Machine**, please contact us.
