Features of Torque and Digital Control
- **Digital Precision:** Torque-controlled motor ensures twist amount and winding tension remain constant throughout the bobbin.
- **Synchronized Dual Motor System:** Provides perfect stability and smooth start/stop functionality.
- **Superior Winding Quality:** Designed to create stable and uniform winding packages, even for large denier industrial yarns.
- **High Efficiency:** Achieves high twist speed (1200 RPM) while maintaining low energy consumption.
- **Intuitive PLC Control:** All parameters, including speed, twist direction (S/Z), and denier, are easily adjustable via the user-friendly touch screen.

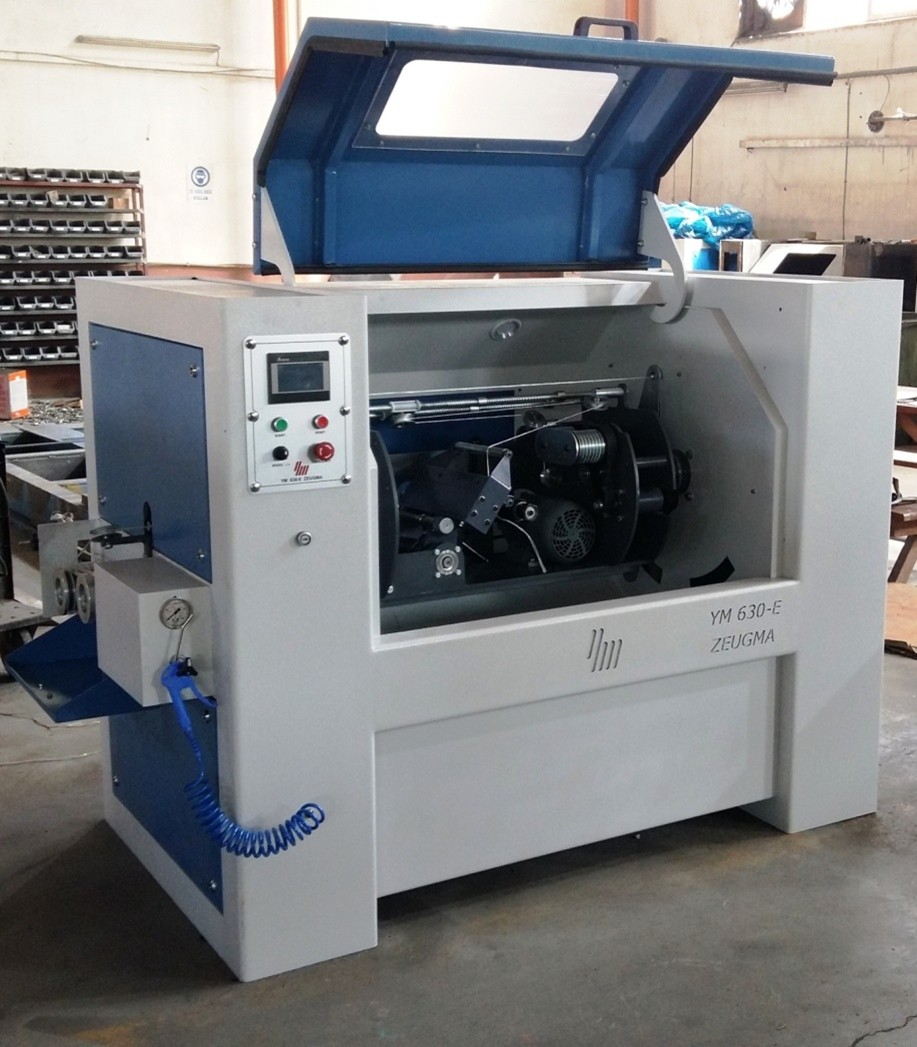

Technical Specifications (YM630E Twister)
| Max Spool Diameter |
Ø530 mm (21 inch) |
| Max Spool Height |
300 mm |
| Max Twisting Speed (Arm RPM) |
**1200 RPM** |
| Motor Power |
3.7 kW AC (Torque Controlled) |
| Control System |
PLC + HMI Touch Screen |
| Twist Direction |
S / Z |
| Twisting Range (Denier) |
**10,000 - 60,000 DENIER** |
Application Areas
- Cable Filler Yarns
- Strands for Industrial Rope Production
- Marine and Fishing Rope Yarns
- Heavy-Duty Industrial Twines
- Technical Textile and Geotextile Applications
- Lifting Slings and Heavy-Duty Nets
For more information or to request a quote for the **YM630E Twisting Machine**, please get in touch with us today.
Get Your YM630E Quote & Demo
Contact us for technical specifications, pricing, and on-site demonstrations.
