Features and Advantages of Torque Control
- **Digital Winding Precision:** The torque-controlled motor ensures that the winding tension and twist amount remain precisely consistent throughout the entire bobbin.
- **Consistent Product Quality:** The advanced control system minimizes yarn breakage and quality variations, providing continuous, standard-compliant production.
- **High-Speed Stability:** Designed for heavy industrial use, it maintains stability even at maximum twist speeds.
- **User-Friendly PLC Control:** All winding and twisting parameters are easily adjusted and monitored via the PLC touch screen, offering maximum process control.
- **Durable Design:** Robust chassis and quality components ensure long machine life and low maintenance costs.

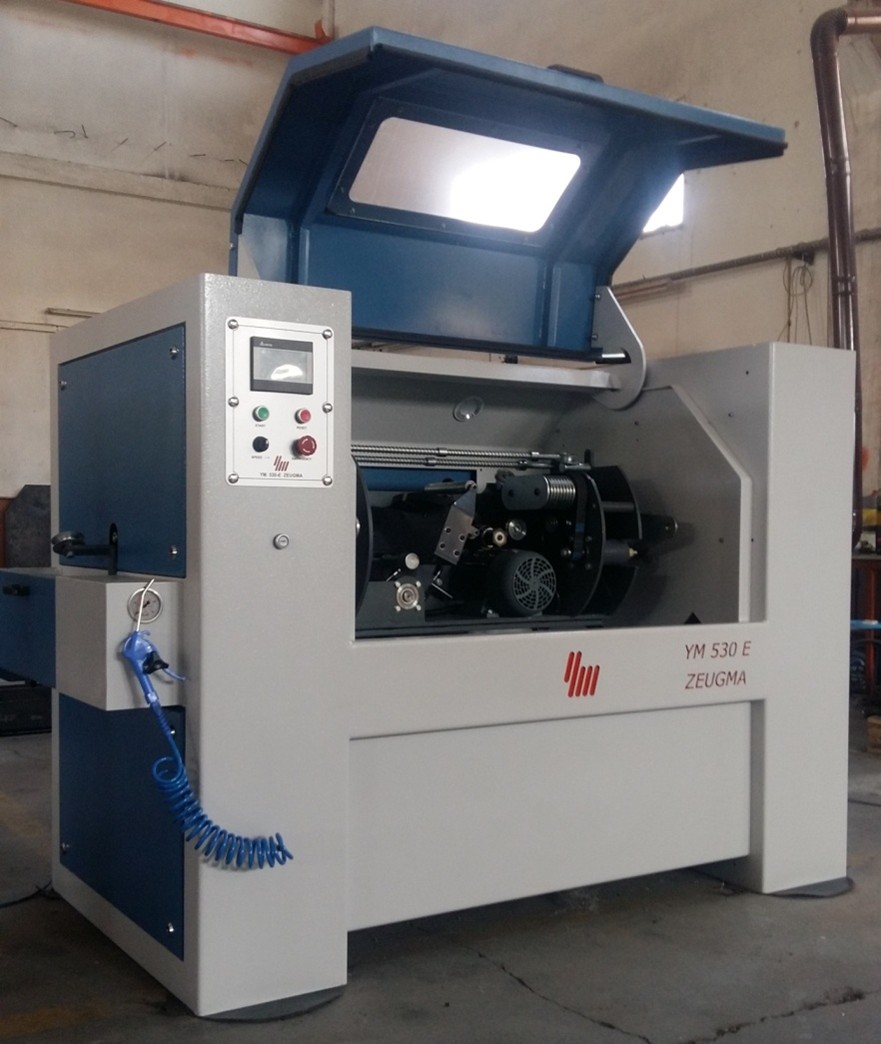

Technical Specifications (YM530E Twister)
| Spool Diameter |
Ø530 mm (21 inch) |
| Max Spool Height |
300 mm |
| Max Twisting Speed |
**1200 RPM** |
| Motor Power |
3.7 kW AC (Torque Controlled) |
| Control System |
PLC + HMI Touch Screen |
| Twist Direction |
S / Z |
| Twisting Range (Denier) |
**10,000 - 60,000 DENIER** |
Application Areas
- Cable Filler Yarns
- Main Strands for Industrial Rope Production
- Marine and Fishing Rope Yarns
- Heavy-Duty Industrial Twines
- Technical Textile and Geotextile Applications
- Lifting Slings and Heavy-Duty Nets
For more information or to request a quote for the **YM530E Twisting Machine**, please get in touch with us today.
Get Your YM530E Quote & Demo
Contact us for technical specifications, pricing, and on-site demonstrations.
